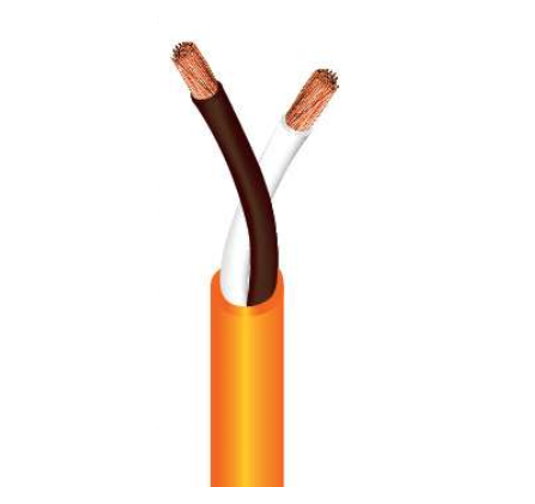

Benka Fire Resistant Power Cable (Mica)

Giá:

Liên hệ

BENKA fire cables offer high fire resistance, maintain circuit integrity, and support alarms, emergency lighting and critical communications with minimal smoke and no acidic gases.

Liên hệ tư vấn

Thông tin sản phẩm
Tài liệu/Download

Construction

Conductor	Stranded bare copper conductor to IEC 60228, DIN VDE 0295, EN 60228, class 2/class 5
Fire barrier	Mica tape outside each core/all cores + fiberglass tape (optional)
Insulation	Cross-linked LSZH (HX)/Cross-linked polyethylene (XLPE)
Outer sheath	Low smoke zero halogen (LSZH) compound. Color: Orange, RAL 2003

Technical Data

Working voltage	600/1000V
Test voltage	3500V
Rated temperature	-20°C to +90°C
Flame retardant	IEC 60332-1
Flame propagation	IEC 60332-3-22
Fire resistant	IEC 60331-21,DIN 4102-12 (210) & EN 50020 Annex E
Halogen free	IEC 60754-1
Acid and corrosive gases	IEC 60754-2
Smoke density	IEC 61034-2
Standard & Approval	RoHS, SIRIM,TUV
Minimum bending radius	8 x OD (static)
